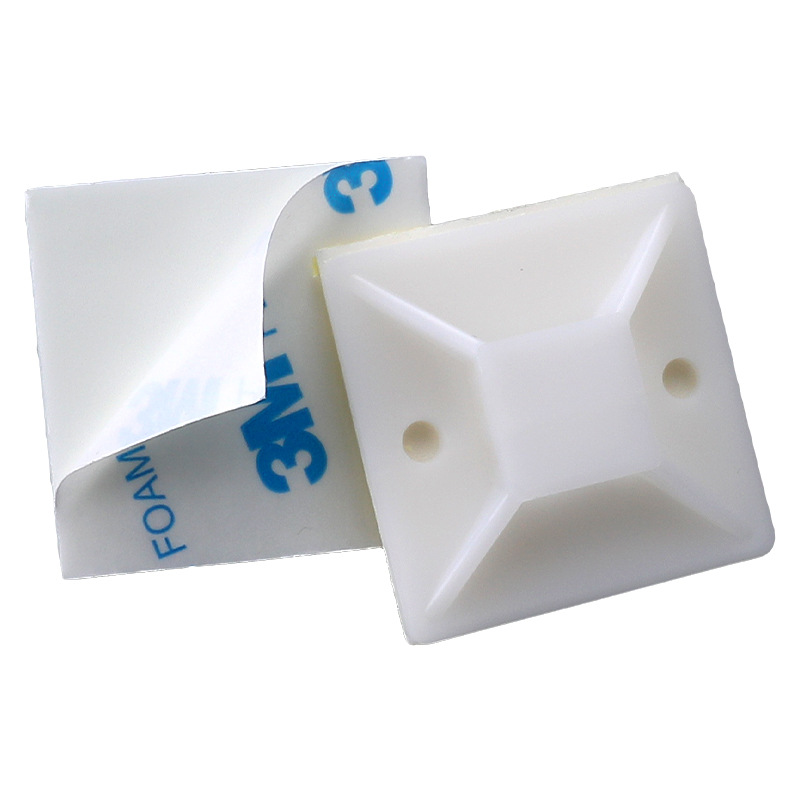

自粘式定位片

    材质:采用UL认可之尼龙66料制成,防炎等级94V-2。背附进口双面海棉胶,绝缘良好、耐久性、不易老化。使用方法:将定位片海棉胶撕开,贴于机板固定,再用扎带捆扎电线。用途:省时、简便、供面板不可以钻孔时使用。Material:Nylon 66, 94-2,certificated by Ul, the back attached sponge glue imported.Usage:

订购热线:13780106896

产品详情

材质:采用UL认可之尼龙66料制成,防炎等级94V-2。背附进口双面海棉胶,绝缘良好、耐久性、不易老化。
使用方法:将定位片海棉胶撕开,贴于机板固定,再用扎带捆扎电线。
用途:省时、简便、供面板不可以钻孔时使用。
Material: Nylon 66, 94-2,certificated by Ul, the back attached sponge glue imported.
Usage: Peel the sponge glue and stick on the wall then, bundle the wire with cable ties.
Application: For bundling wires and other things save time and convenient, used for the wall which can't be made a hole in.

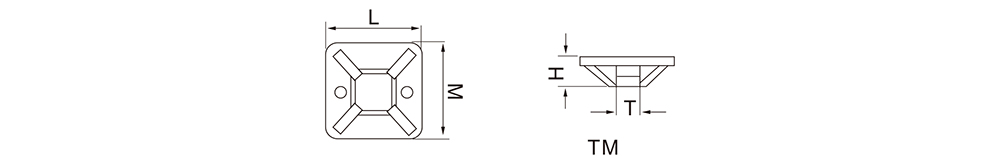

型号
ITEM.NO.
长×宽
L×W
高(H)
(mm)
T
(mm)
螺丝钉
SCREW HOLE(mm)
YSTM-2020×206.16.02.4
YSTM-2525×257.57.02.5
YSTM-3030×307.57.83.2
YSTM-4040×408.511.54.5
